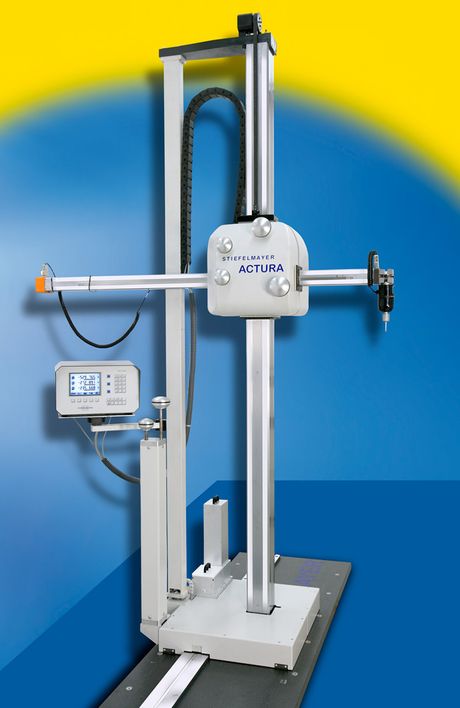

The ACTURA machines feature guide rules which are screwed onto a slot in the measuring plate. Alternatively, the ACTURA CMM can also be delivered with moveable guides. In that case the machine can be moved around the work piece. For the lifting and putting down of the machine we offer a comfortable manual lift truck.
Actura
ACTURA
Cost Effective and Highly Flexible
Our system ACTURA is an attractive solution for manual measuring and marking-out tasks: This includes the measurement of large single parts, the marking of workpieces and clay design models as well as the dimensional inspection of devices and parts.
The ACTURA is equipped with the iPad Application EASY Line. EASY Line allows the wireless visualisation of measuring results in a easy-to-read 3 axis display, close to the operator and the workpiece. Furthermore, measuring parameters and the setup of the machine can be easily stored in the integrated project management. EASY Line can be connected to the most common inspection software packages.
Upgrade solution - new ACTURA on existing measuring plates:
Our ACTURA machines are fully compatible with older measuring plates "system B" or ACTURA. It is also possible to set up ACTURA machines on existing VENTURA guiding systems. For former "Stenzel" machines we also offer an exchange concept. Thus you can equip your existing measuring plate with a new ACTURA manual machine without having to make any changes on the plate or on the floor.
Further advantages:
Flexible sizes
Very smooth movement in all axes
Measuring with or without inspection software
Variable accessories and equipment options
Technical Data
Applications
Measurements of large single parts; Layout tasks; Marking-out and measuring in clay design studios; Measurement check at fixtures
Attachment to measuring plate
Guide rail with screwed or plugged-in lineal on measuring/marking plate, cut to size
Maximum measuring range
X axis: unlimited; Y axis: up to 2000 mm (2500 mm for layout machines); Z axis: up to 3000 mm
Measuring accuracy (E0)
45 - 120 µm + L/20 < 100 - 240
Basic equipment
Magnetic scale system, solid and robust also in workshop environment
EASY Line – iPad Application for wireless digital measurement readout and more
