With the infinitely variable Werth rotary/tilt head, the Chromatic Focus Point sensor can be positioned perpendicular to the workpiece surface, for example. This considerably expands the range of applications for the sensor. For example, line profile shape, channel depth, tool centre offset and embossing angle can be measured on wave profiles with small radii of 0.1 mm.

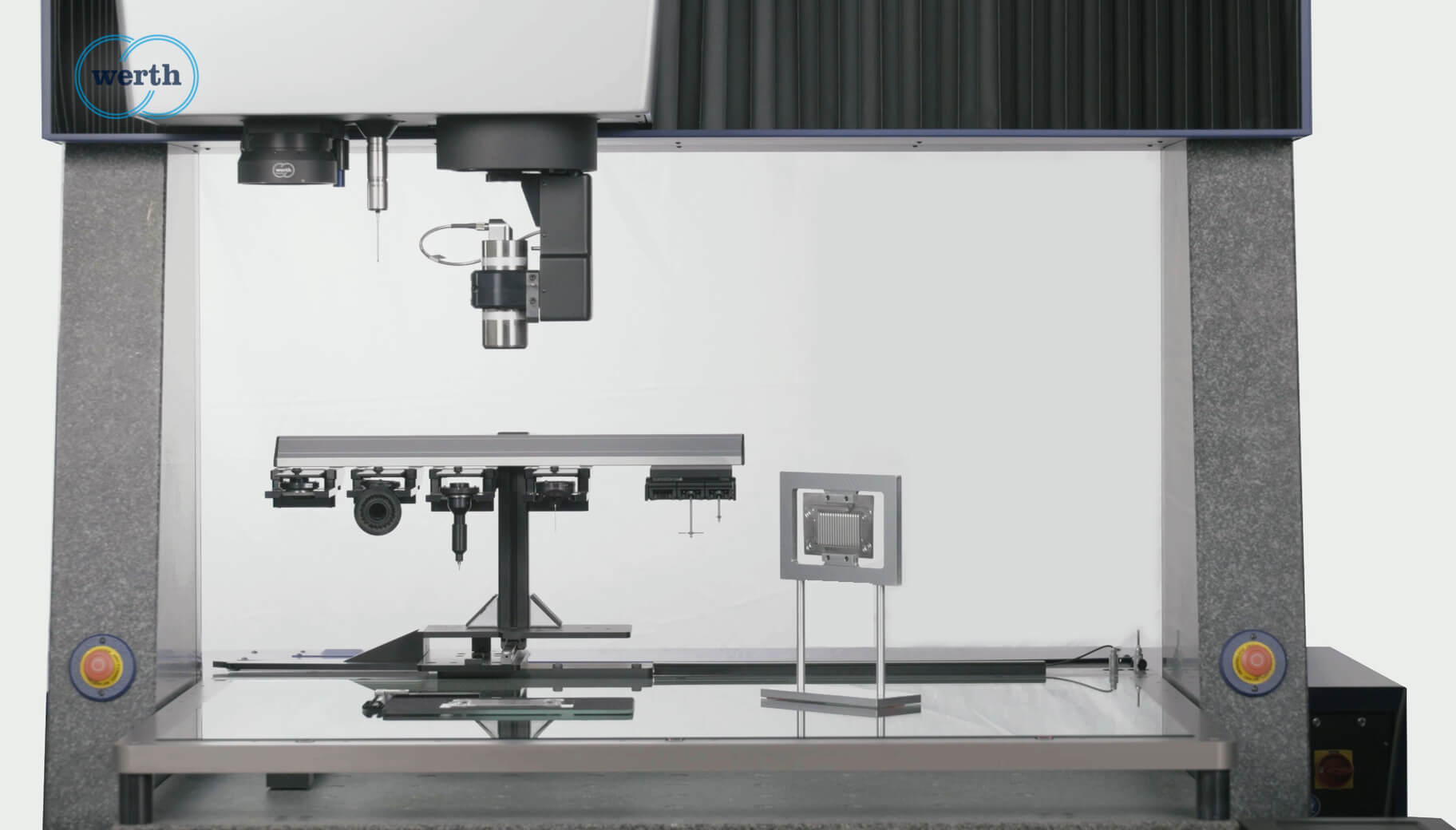

WRT rotary/tilt head
WRT rotary/tilt head
Infinitely variable alignment of sensors to the workpiece
Benefits
Measure optically in all positions
Other benefits
Capture steep flanks with 2,000 measurement points per second
Optimum alignment for the respective flank side
