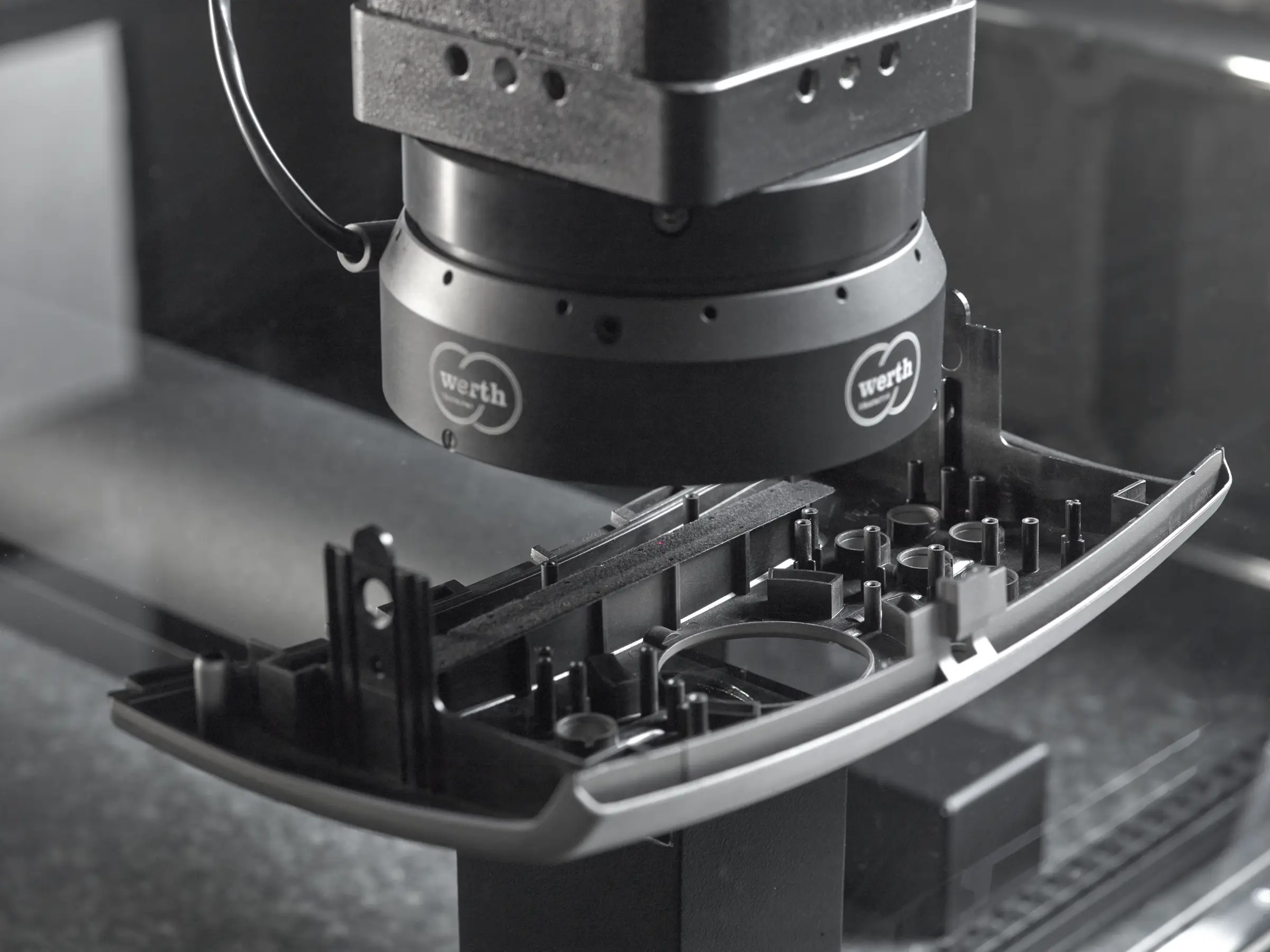

The EasyScope® device series is now available in three variants with an optimum price-performance ratio. Automatic image processing ensures high process stability even for difficult measurement tasks and operator-independent measurement results. All EasyScope® machines are equipped with low-distortion telecentric lenses so that the specification applies to the entire field of view.

Optoelectronic zoom for fast zooming of small details or for switching to the overview image with a click of the mouse

Automatic zooming and light switching in the programme sequences

Automatic recognition of measured geometric elements with Werth AutoElement

Navigation to the measuring positions saved in programme sequences

High flexibility thanks to 8-segment darkfield incident light and transmitted light illumination

Brightfield incident light can be integrated into the beam path

Specification following VDI 2617

Type

3D image processing measuring machine

Measuring range

X = 200 mm, Y = 100 mm, Z = 200 mm

Accuracy

Permissible length measurement error up to 2.5 µm
