The TomoScope® XS FOV is a flexible and easy-to-use machine for fast measurements with industrial computed tomography. The 3D measurements take place directly in the detector's field of view without moving axes and can be fully automated. Several small workpieces such as lids or dowels can be measured together using suitable fixtures. The TomoScope® XS FOV is ideal for measurements close to production of plastic workpieces manufactured in large quantities.

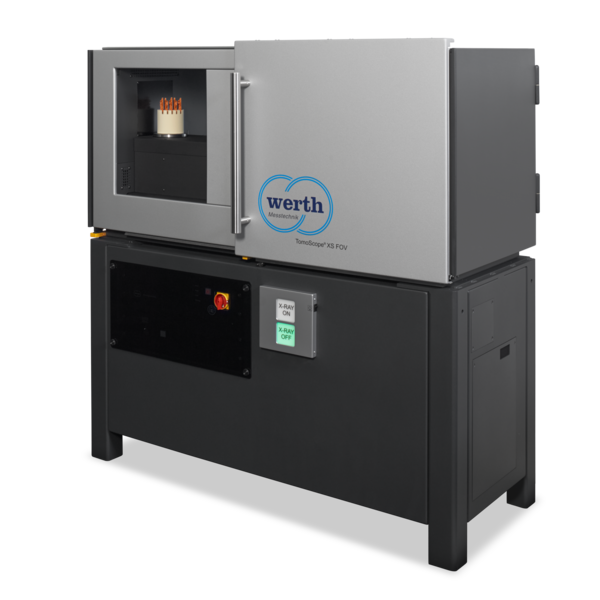

TomoScope® XS FOV
TomoScope® XS FOV
The entry-level device for industrial computed tomography (CT) for small workpieces
Benefits
Measurements with X-ray tomography in the detector's field of view for shopfloor and measuring room
Other benefits
High availability thanks to maintenance-free tube in monoblock design
24-month warranty without shift limitation on the tube
High-precision air bearing rotary axis for low measurement uncertainty
Low space requirement due to compact design
Can be set up almost anywhere due to its low weight
Fast amortisation due to low acquisition costs
OnTheFly Tomography and reconstruction in real time enable fast measurements
Standard-compliant calibration according to VDI 2617 for reliable and traceable measurement results, optionally with DAkkS certificate
Technical Data
Type
3D CNC coordinate measuring machine with computed tomography sensors
Measuring range
Max. Workpiece dimensions D = 120 mm / L = 93 mm (depending on the aspect ratio of the workpieces)
Accuracy
Permissible length measurement error up to 5 µm
