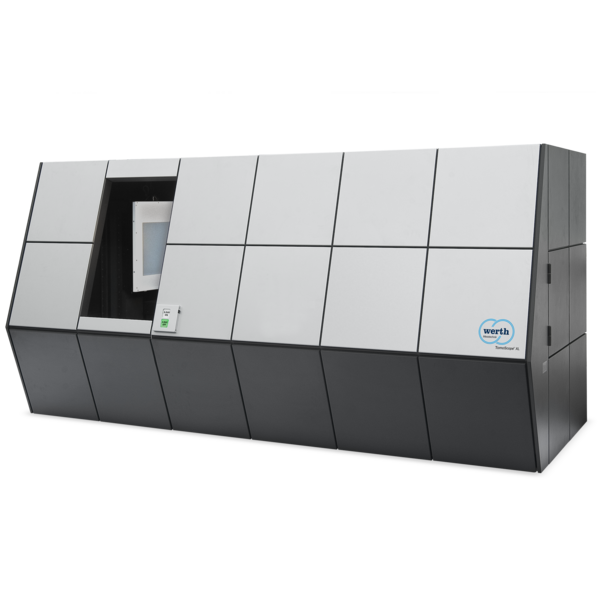

The TomoScope® XL can also be used for measurement and inspection tasks on massive, large workpieces. To extend the range of applications, a second X-ray source can be used in automatic changeover in this multi-sensor coordinate measuring machine with X-ray tomography, for example, to additionally measure small components with the highest resolution. Areas of application are workpieces with high density (aluminum, steel, titanium, elastomers, hybrid plastics, 2K, ceramics, multi-materials (e.g. connectors), assemblies, glass fibre reinforced plastics).

Large distance between X-ray tube and detector for precise measurement with small cone angles

Optical workpiece positioning aid for easy positioning of the measuring objects

Due to the accuracies achievable with sub-voxeling and the high density of measuring points, this technique is also ideally suited for the correction of tools for injection moulding

All TomoScope® machines correspond in design and construction to full protection devices according to the Radiation Protection Ordinance

A workpiece changing system can be integrated into the machine housing and the computed tomography coordinate measuring machine can also be used continuously and automatically overnight and at weekends

Highly accurate 3D measurements, even in production or incoming goods, thanks to optional active unit air-conditioning

Standard-compliant calibration according to VDI 2617 for reliable and traceable measurement results, optionally with DAkkS certificate

Type

3D CNC coordinate measuring machine with computed tomography sensors

Measuring range

Max. Workpiece dimensions D = 530 mm / L = 725 mm (depending on the aspect ratio of the workpieces)

Accuracy

Permissible length measurement error up to 4.5 µm

The universal measurement software for coordinate measuring machines with optics, probe, computed tomography and multi-sensor systems

The operation of machines with a wide variety of sensors, as well as the evaluation of volume data and point clouds ...

Comprehensive service around the coordinate measuring machine

Services from initial commissioning, training and maintenance to retrofitting ...
